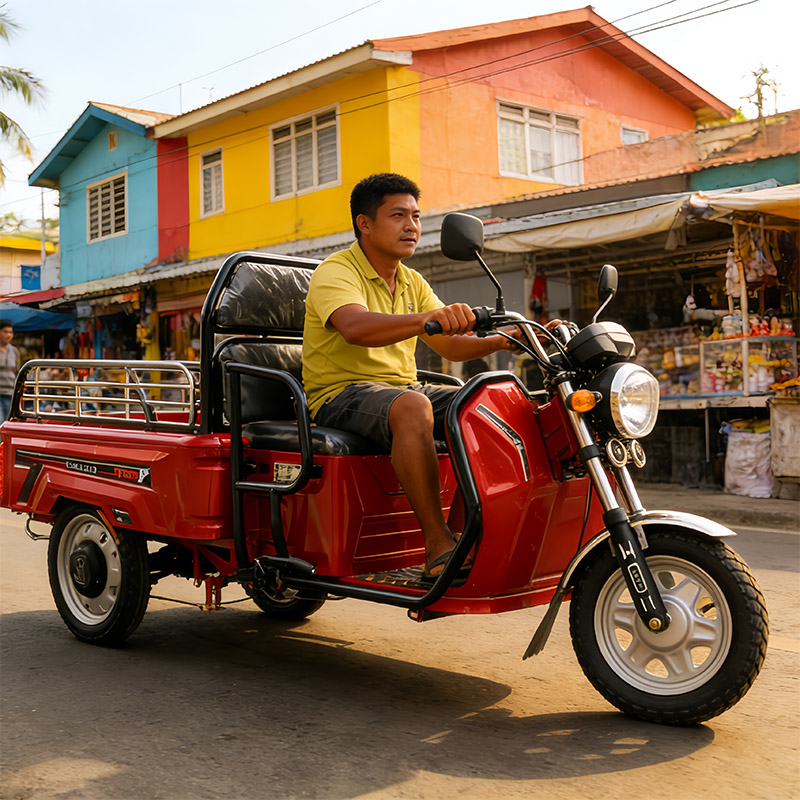

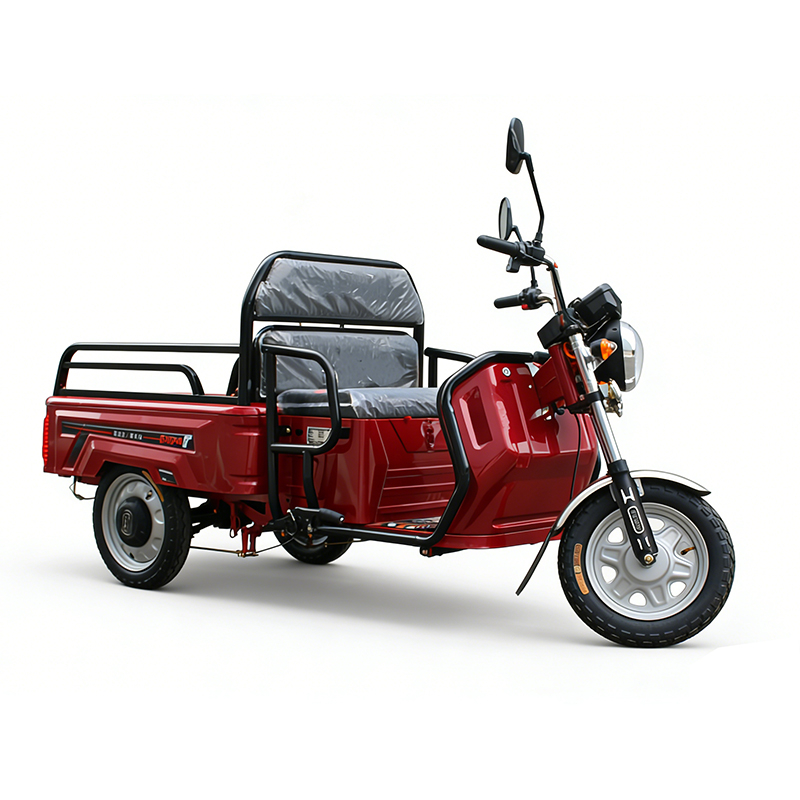

This small electric tricycle in red-orange color scheme is a practical choice for daily leisure commuting and light-load cargo transportation. With its compact body and flexible loading capacity, it serves as an excellent helper for household life and micro-business operations.
In daily travel, it is an ideal commuting tool for the elderly to stroll around the community, buy groceries and do shopping. Its low-speed and stable driving performance ensures travel safety, and its flexible body can easily navigate through neighborhood lanes and city streets. Young people can also use it as a short-distance commuter vehicle to meet the connection needs from home to subway stations and bus stops, bidding farewell to the trouble of traffic jams.

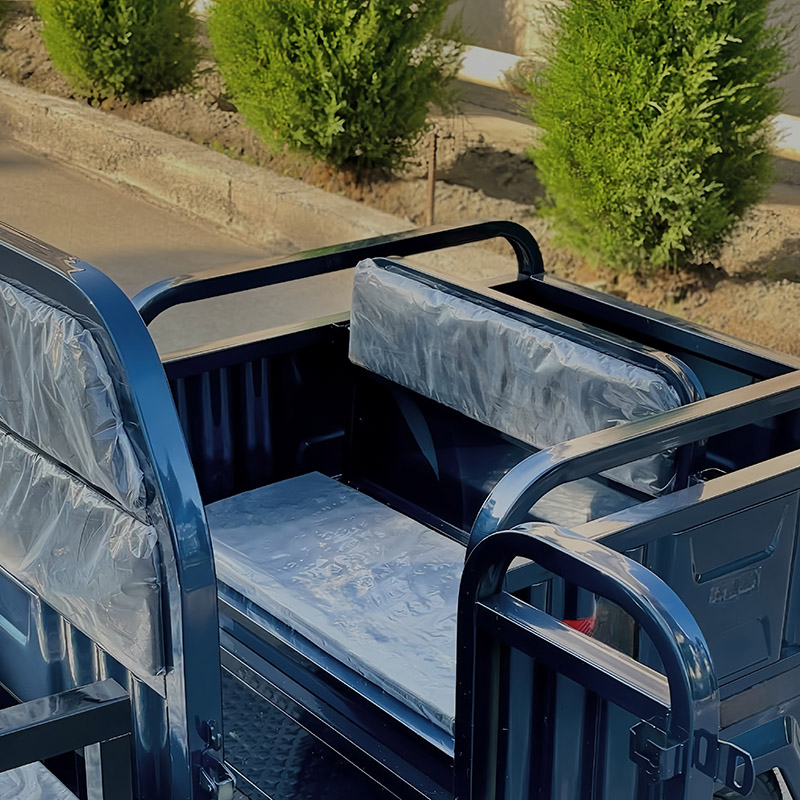

In terms of cargo transportation, the open cargo hopper design can easily accommodate items such as rice, flour, cooking oil, express packages and small farm tools. It can effortlessly handle the transportation of large daily necessities for family purchases and fruits, vegetables, agricultural materials for farmers. Micro-merchants also find it very convenient to deliver small goods and transport commodities for stall business. The guardrail design of the cargo hopper can prevent goods from sliding off, achieving both practicality and safety. Whether it is for daily leisure commuting in urban and rural areas or light-load cargo transportation, this electric tricycle can accurately adapt to various scenarios and become a multi-functional travel companion in life.
Overall Size: 2450*850*1130mm
Cargo Box Size: 1100*850*400mm
Curb Weight: 190Kg
Loading capacity: 300Kg
Wheelbase: 1340mm
Track width: 680mm
Motor: 800W
Controller: 18 Tube
Maximum climbing gradient: ≥ 20 °
Max Speed: 25-35Km/h
Hydraulic shock absorption: φ33mm
Tyre: Front 3.00-12;Rear 3.00-12
Brake System: Front/Rear Drum Brake
CKD: 70Units/40HC
SKD: 40Units/40HC
| Product Parameters | |
| Model No. | SK-2504 |
| Motor | 60V800W |
| 18Tube | |
| Curb Weight | 190KG |
| Loading Capacity | 300KG |
| Overall Dimension | 2450*850*1130mm |
| Box size | 1100*850*400mm |
| Brake System | Front /Rear Drum |
| Climbing Ability | ≤20° |
| Front/Rear tyre | 300-12 |
| Rim type | Steel Wheel |
| Range Per Charge | 35KM |
| lithium battery | 48v45A |
| Max Speed km/h | 25-35km/H |
| Charging Time | 7-9H |
| Front Fork | Φ33Hydraulic External Spring |
| Transport Package | SKD: 40/40HQ CKD: 70 Sets/40'HQ |
