Sanitation & Cleaning Electric Vehicle

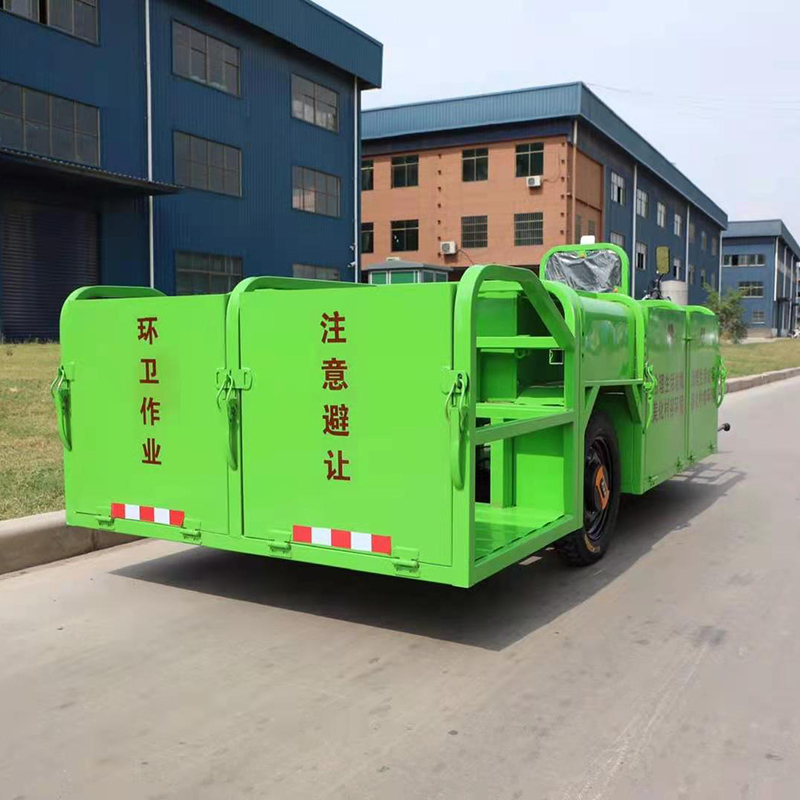

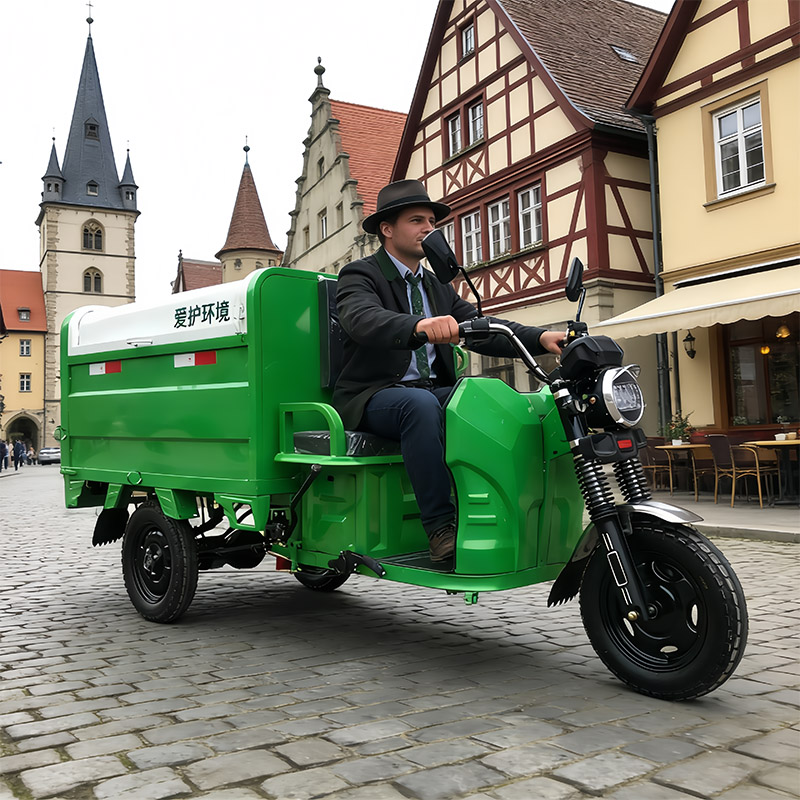

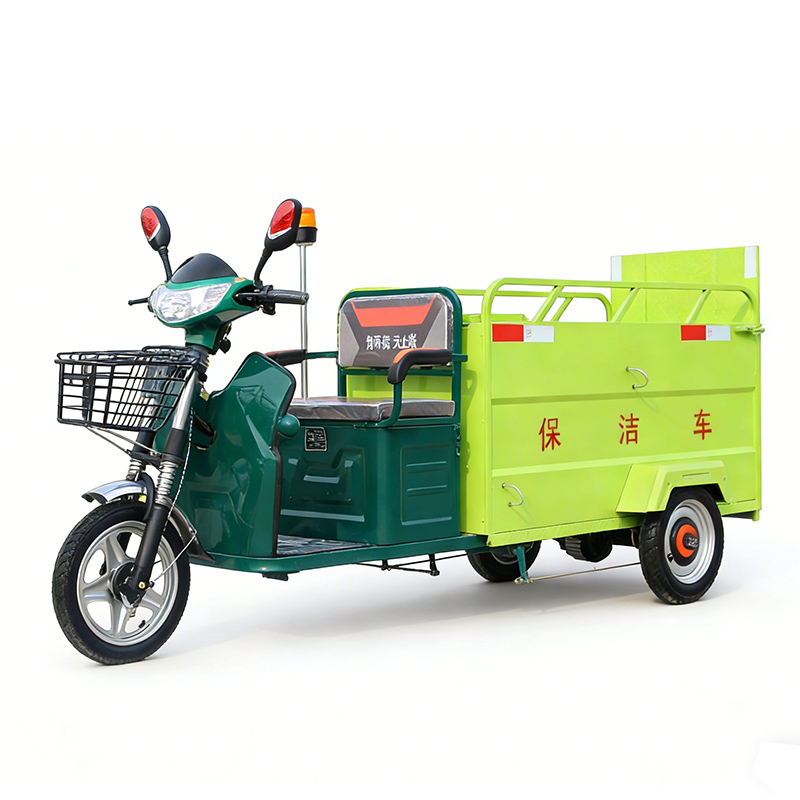

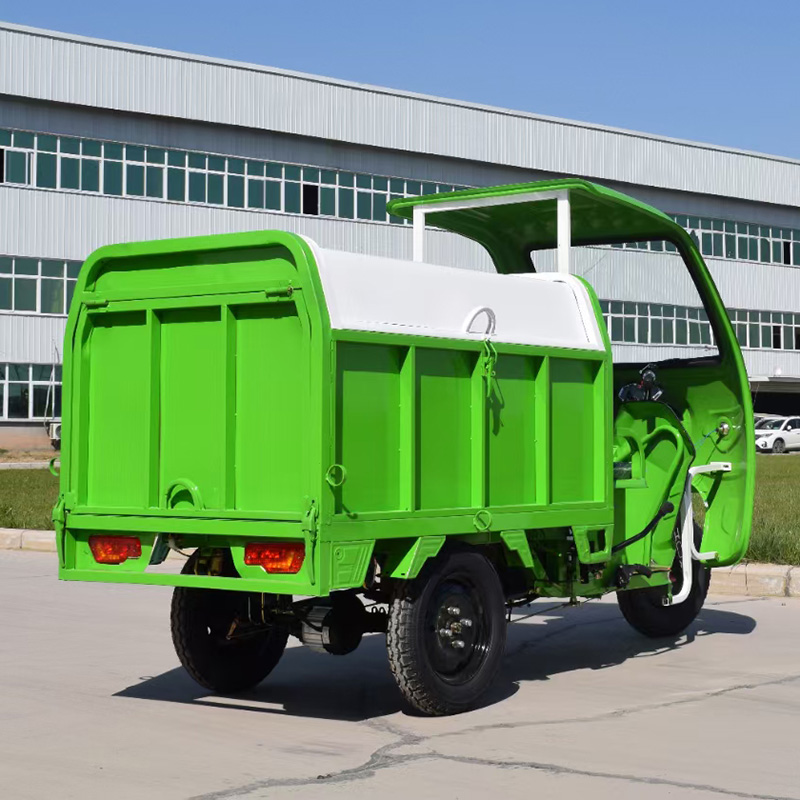

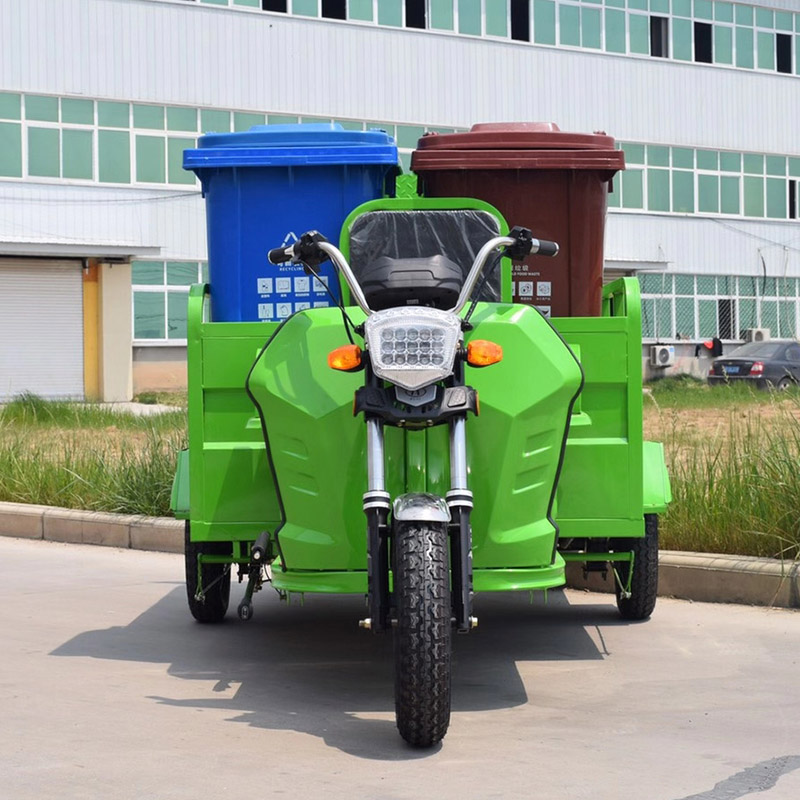

This green electric tricycle garbage transfer vehicle is a practical tool specially designed for urban and rural garbage collection and transportation. The vehicle is equipped with a customized storage rack that can fix four classified garbage bins of different specifications at the same time, realizing the classified transfer of garbage. Powered by electricity, it features low energy consumption and low noise, with a low operating threshold, and can be operated without professional driving qualifications.

In terms of usage, it is mainly used for short-distance transfer of classified garbage in communities and streets, and can also undertake garbage collection and transportation in scenic spots and parks. The application scenarios cover narrow alleys in old urban communities, township streets, commercial parks, scenic trails and other areas. It can flexibly travel on roads where large garbage trucks are difficult to access, connecting the "last mile" between garbage collection points and transfer stations, and greatly improving the efficiency and standardization of classified garbage collection and transportation.

Overall Size: 3030*1100*1700mm

Cargo Box Size: 1.6*1.1*0.55m

Curb Weight: 320Kg

Loading capacity: 750Kg

Wheelbase: 1820mm

Track width: 980mm

Motor: 1500W

Controller: 24 Tube

Maximum climbing gradient: ≥ 25 °

Max Speed: 30-45Km/h

Hydraulic shock absorption: φ43mm

Tyre: Front 4.00-12;Rear 4.50-12

Brake System: Front/Rear Drum Brake

Battery: 60v58A (60km)  brand battery

CKD: 36Units/40HC

SKD: 28Units/40HC
